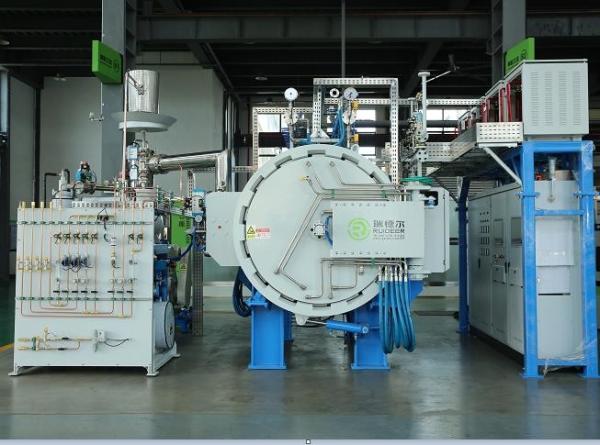

White Black Deep Blue Gas Pressure Sintering Furnace For Carbide Nitride Material

Brand Name : Ruideer

Model Number : 100 bar/60bar/10bar

Certification : CE certificate, GB150, JB4732

Place of Origin : China

MOQ : 1 set

Price : USD 93,000-77,000,000

Payment Terms : L/C, T/T

Supply Ability : 7 sets / month

Delivery Time : 5-8 months

Packaging Details : Special wooden box

Color : white, gray, black, blue

Power rating : 120KVA, 150KVA, 480KVA

Furnace shell : carbon steel

heating element : graphite/metal

Forming agent : PEG, Paraffin, rubber

Heating speed : 3-6℃/min

Contact Now

White/Black /Deep Blue Gas Pressure Sintering Furnace For Carbide/Nitride Material

Sintering is the process of heating material with the aim of compacting and strengthening it overall. For customer applications, China's famous powder metallurgy sintering furnace manufacturer Ruideer, utilizes graphite, metal etc as heating element.

Strength of a material is its ability to withstand this applied load without failure or plastic deformation. For tensile stress, the capacity of a material or structure to withstand loads tending to elongate is known as ultimate tensile strength (UTS). Yield strength or yield stress is the material property defined as the stress at which a material begins to deform plastically whereas yield point is the point where nonlinear (elastic + plastic) deformation begins.

Sintering space 80-450L
Working temperature 1600℃(maximum working temperature)
1550℃(actual working temperature )

Pumping speed

The vacuum degree can reach 5Pa within 30min after the pump is started, and the limit vacuum value can reach 1Pa after pumping for 30min after reaching 5Pa

(After drying the furnace, under the empty furnace, clean and cold state.)

Leakage rate

≤3Pa/h

(Measuring the limit vacuum after drying the furnace, stop the operation of the pump group and start the test. Average within 3 hours in empty furnace, clean and cold state)

Cooling speed

 Empty furnace. The cooling time of cooling temperature from 800℃ down to 100℃ just cost less or equal 3 hours.(water temperature≤28℃, 2bar≤water pressure≤3bar)

Cooling speed

 The inner furnace is equipped with rapid cooling fan and cooling water realize rapid cooling.
Heating rod material Graphite
Temperature control mode Three zone temperature control independently
Heating up speed

Empty furnace heating up≤5℃

Heating power

 It is about 480KVA

UPS guarantee time

 It can power the indicator lights and control the furnace when the power goes out,the time is more than or equal 80 minutes.
